TIMM Single Pole Grounding Control Device

Single Pole Grounding Control Device

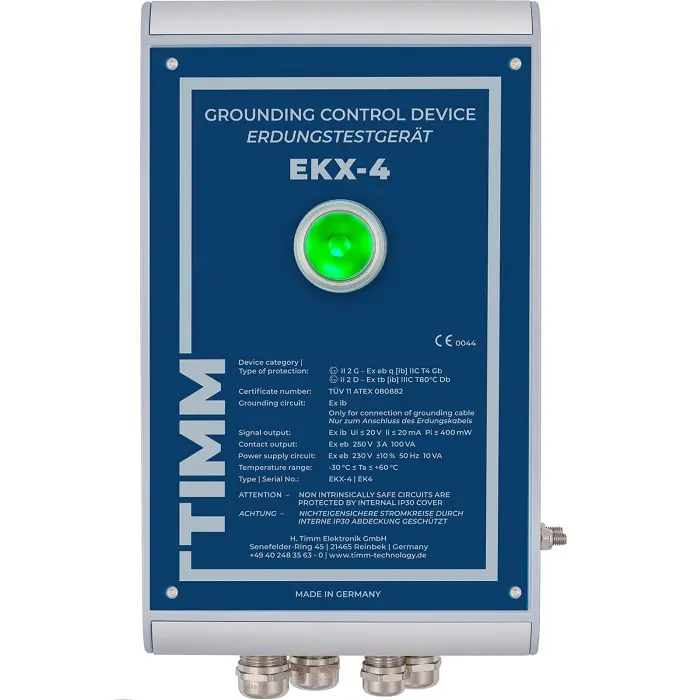

The Grounding Control Device EKX-4 ensures the controlled discharge of electrostatics occurring during the filling processes of tank trucks, silo trucks, railway wagons or tank containers. This makes an important contribution to the prevention of static-caused ignitions in explosive atmospheres and implements the requirements of the most recent national and international regulations e.g. TRGS 727, TRBS 2152, DGUV regulation 113-001 (EXRL), CLC/TR 50404 and IEC TS 60079-32-1.

1-Pole Grounding Clamp for EKX-4

The EZ1 is a rubber-insulated stainless steel grounding clamp for the EKX-4 control device. The clamp is also ATEX-certified.

Cable Reel with Clamp for EKX-4

The KA1-## cable reel system is made with a robust and durable neoprene coating, connected to a 1-pole stainless steel grounding clamp for connection to the grounding control device; EKX-4. ATEX certified for use in zones 1|2.

It comes in lengths of 6m, 8m,10m, and 12m

Spiral Grounding Cable with Clamp, for EKX-4

This extendable single-pole spiral grounding cable connects objects to the EKX-4 grounding control device with flexibility and ease. The cable is resistant to high radiation exposure, mineral oil exposure and is durable within temperatures from -25°C to + 70°C. The cable and clamp are ATEX certified for use in zones 1|2 and 21|22.
