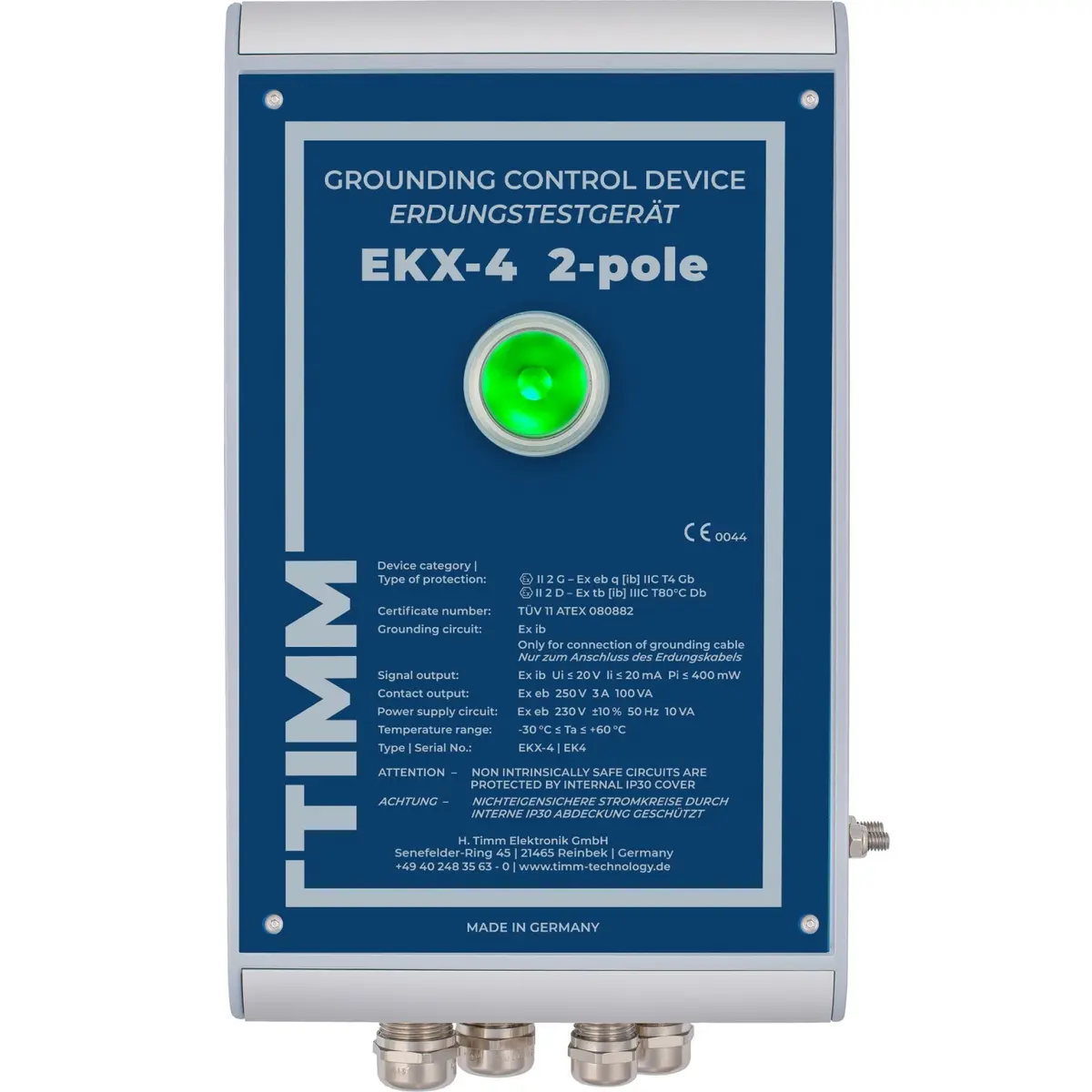

TIMM 2-Pole Grounding Control Device

2-Pole Grounding Control Device

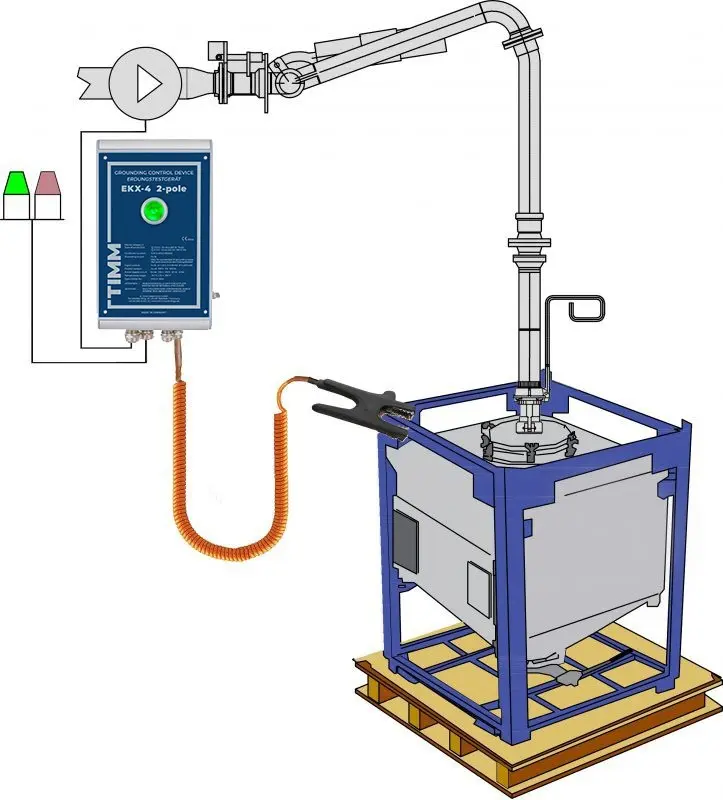

TIMM’s Grounding Control Device EKX-4 (2-pole) ensures that static electricity is safely discharged to the ground via an easy single clamp.  The green LED signals the object is grounded, allowing the filling release system to engage and safely transfer the hazardous substances. If the grounding connection is broken at any time, the filling operation will be interrupted immediately.

Grounding Clamp for EKX-4 (2-Pole)

The EZ1 is a rubber-insulated stainless steel grounding clamp for the EKX-4 (2-Pole) control device. The clamp is also ATEX-certified.

Cable Reel with Clamp for EKX-4 (2-Pole)

The KA2-## cable reel system is made with a robust and durable neoprene coating, connected to a 2-pole stainless steel grounding clamp for connection to the grounding control device; EKX-4 (2 Pole). ATEX certified for use in zones 1|2.

It comes in lengths of 6m, 8m,10m, and 12m

Spiral Grounding Cable with Clamp, for EKX-4 (2 Pole)

This extendable single-pole spiral grounding cable connects objects to the EKX-4 (2-Pole) grounding control device with flexibility and ease. The cable is resistant to high radiation exposure, mineral oil exposure and is durable within temperatures from -25°C to + 70°C. The cable and clamp are ATEX certified for use in zones 1|2 and 21|22.
