TIMM Bite Smart LED

TIMM Bite Smart LED

Bad earthing / grounding / bonding of equipment in hazardous areas can lead to Electrostatic Discharge (ESD), and subsequent catastrophic events like fire or explosion.

Good static control equipment and practices prevent accidents.

TIMM Technology's Smart LED provides simple monitoring of grounding quality between two points. This monitoring system allows the flexibility of mobile and stationary use, ensuring up to 4000 hours of uninterrupted, continuous use from a single battery.

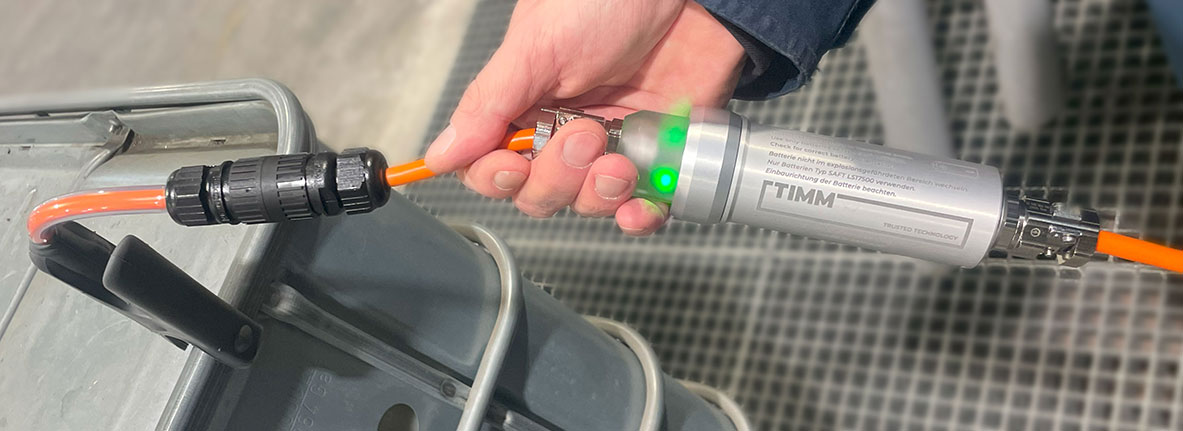

Highly visible 360° LED lights show green for a good connection, red for bad, and a warning when the unit is low on battery.

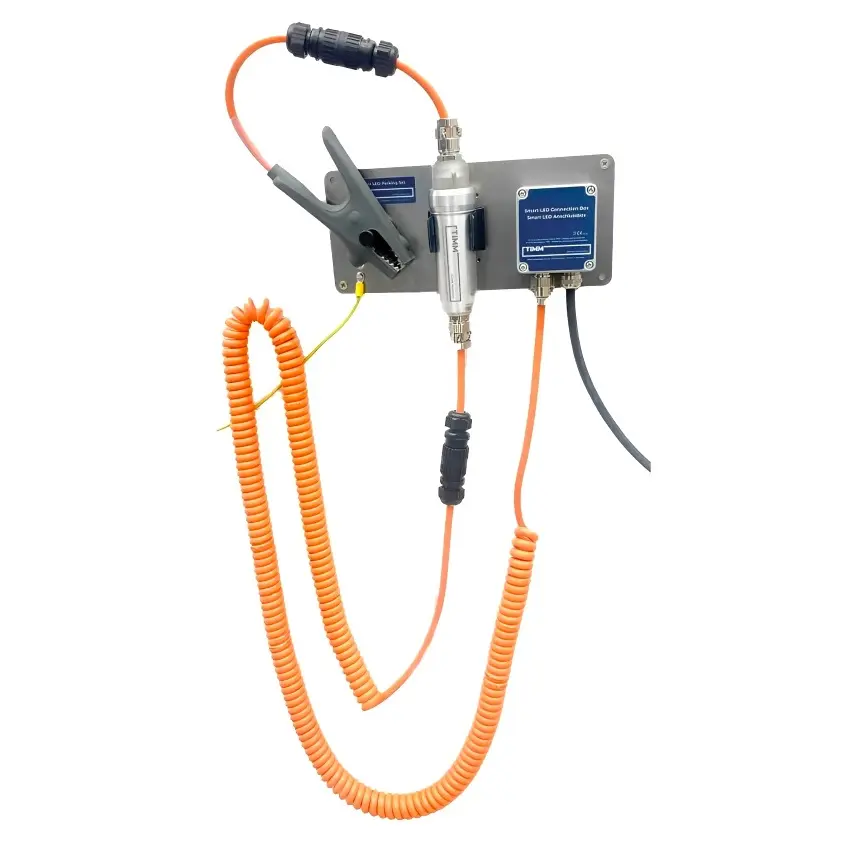

Additionally, it is highly modular, offering excellent flexibility. The Quick Connections allow rapid change of use, e.g. from wall-mounted earthing/grounding to a clamp, to bonding clamp-to-clamp.

• Explosion Protection Type:
  • Ex II 2G Ex ib IIC T4 Gb
  • Ex II 2D Ex ib tb IIIC T85 °C Db
• Power supply: Replaceable battery (3.6 V)
• Switching Limit: 10 Ohms
• Maximum Cable Length: 20 m
• Ambient Temperature Range: -25 °C to +60 °C
• Dimensions: 220 mm, 48 mm ø Weight: 0,5 kg
• Housing: Aluminum, clear plastic cap | IP 65
• Appropriate for Ex Zones 1, 2, 21, and 22
• Certificates:
  • ATEX
  • IECEx
