ESD Brushes
Description
CADSTAT ESD Brushes
Safe for use on static sensitive components.
Ideal for removing dust,dirt or leftover material from PCBs and other static sensitive components.

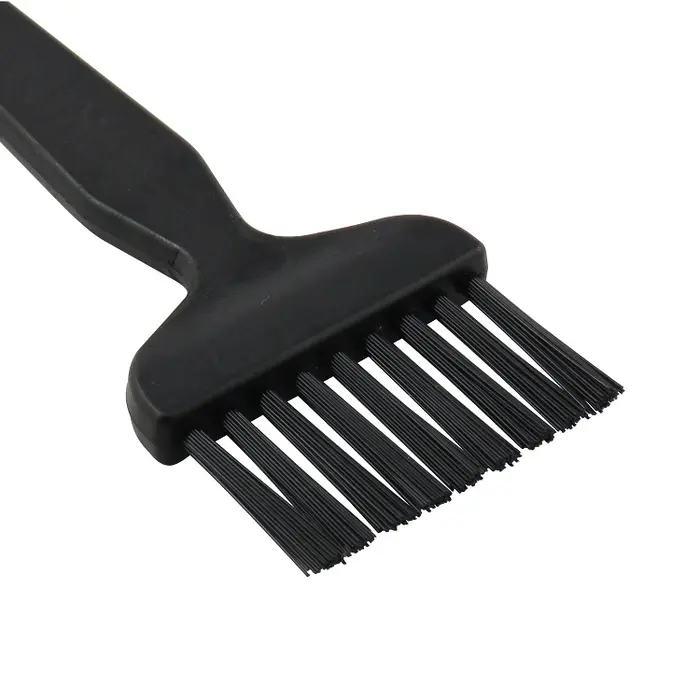

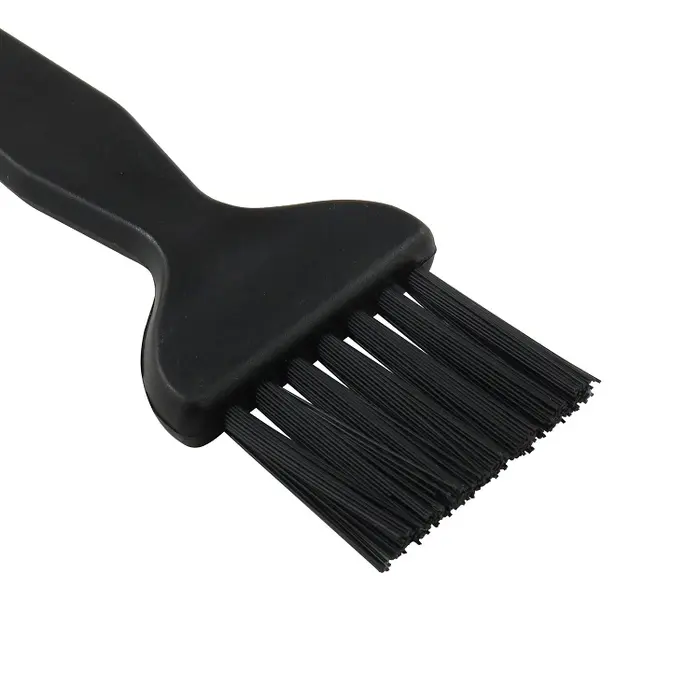

Paint Brush
- BR-ESD33
- 143mm brush length
- 33mm row of bristles
- 25mm bristle length
- conductive polypropylene handle 104Ω - 106Ω
- dissipative nylon fibre bristles 108Ω - 1010Ω
- BR-ESD45
- 143mm brush length
- 45mm row of bristles
- 25mm bristle length
- conductive polypropylene handle 104Ω - 106Ω
- dissipative nylon fibre bristles 108Ω - 1010Ω
Table-Top Brush
- BR-ESD215
- 385mm brush length
- 215mm row of bristles
- 48mm bristle length
- conductive polypropylene handle 104Ω - 106Ω
- dissipative nylon fibre bristles 108Ω - 1010Ω
Round Brush
- BRAL5: 120 x 9mm dia. aluminium body / 6mm wedge + 8mm flat bristles (recommended for wet use)

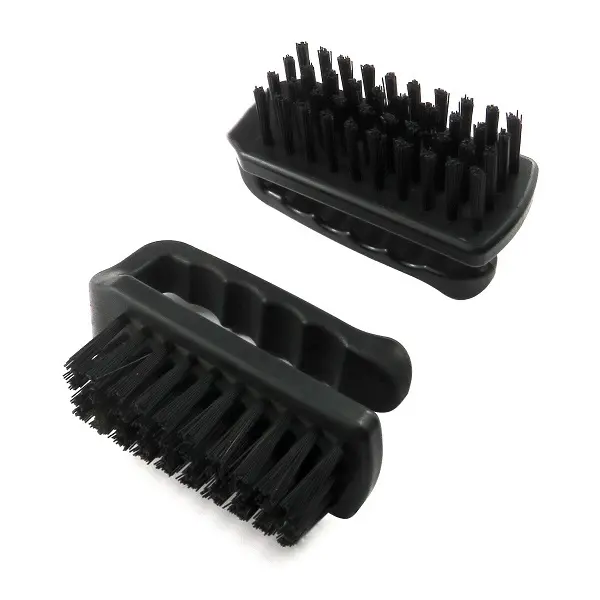

Nail Brush
- BRKB1: 90 x 35mm / 65 x 25 x 20mm long bristles

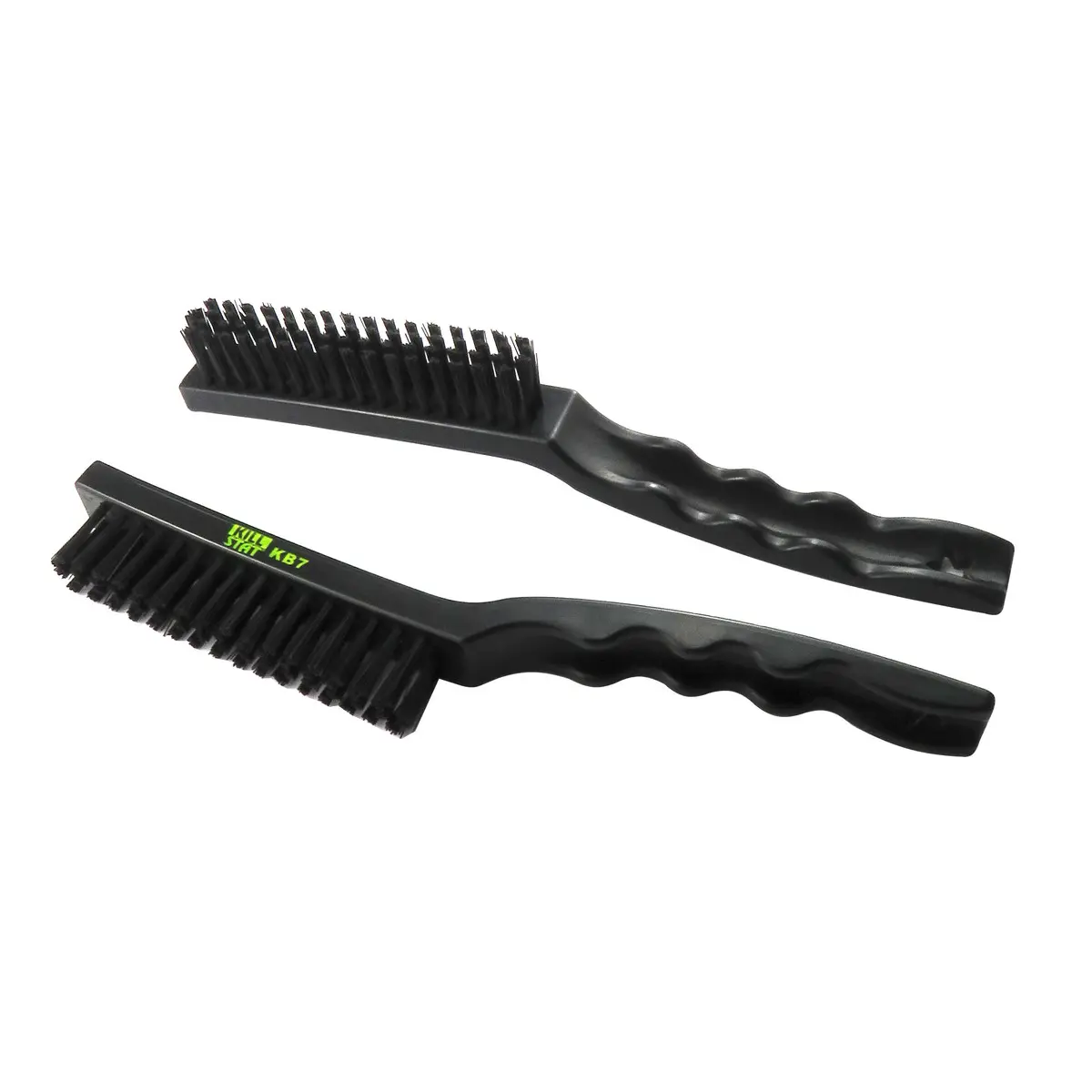

Tooth Brush
- BRKB7: 245 x 24mm / 17 x 110 x 20mm long bristles - conductive handle / antistatic bristles
