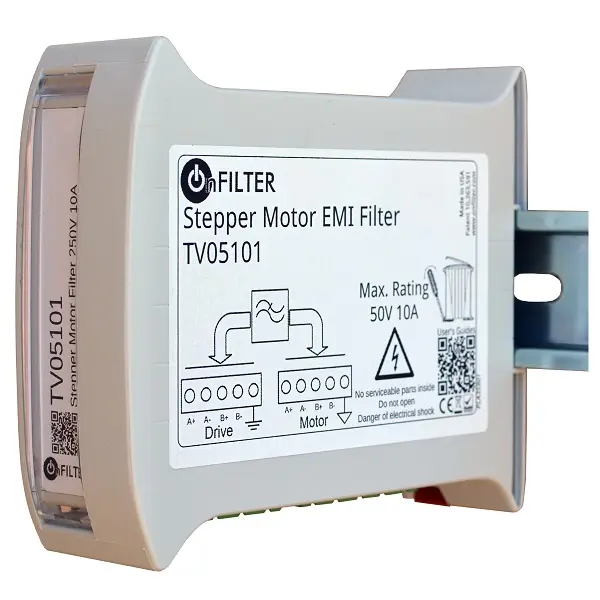

OnFILTER DIN Rail Stepper Motor EMI Filter
Description
OnFILTER DIN Rail Stepper Motor EMI Filter
OnFILTER's stepper motor EMI filter prevents a number of problems in equipment, including EMI pollution of and damage to the motor s bearings from leakage currents via electrical discharge machining (EDM), as well as physical vibration. OnFILTER’s patented dV/dt TV series are complete filters incorporating common mode, differential mode, and ground filtering providing reduction of ground currents in a range of typically 30 to 80 times.
| Parameter | Value |
| Drive Voltage, max. | 50V |
| Drive Current, max. | 10A |

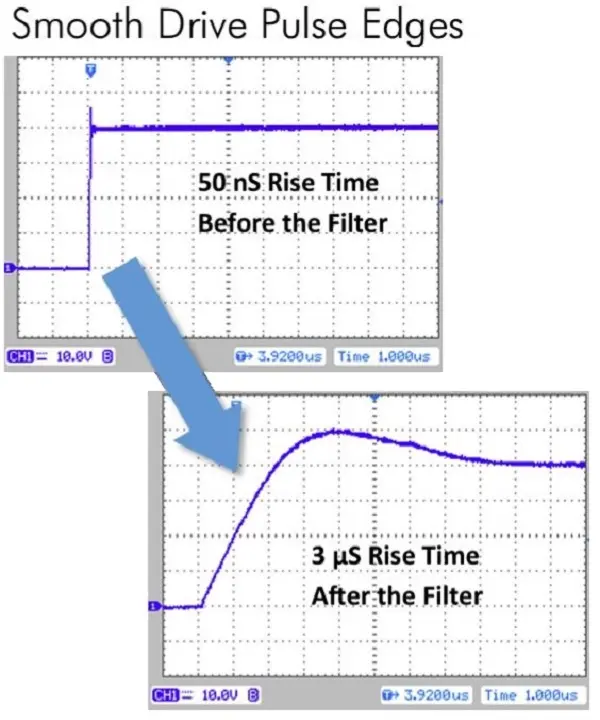

| Rise/Fall times typ. | 20...30 times |

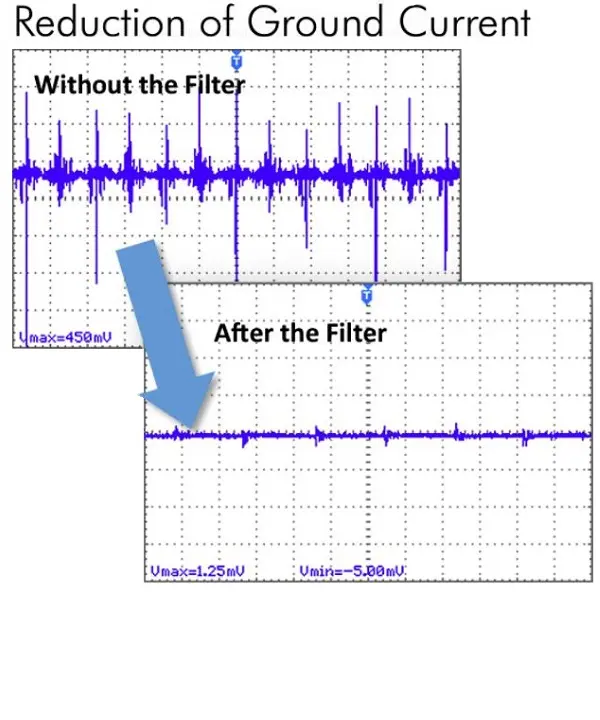

| Ground Current Reduction (typ.) | 30...80 times |
| Nominal DC Resistance | <0.2Ω |
| DIN Rail Case Width | 35mm |
OnFILTER DIN Rail Stepper Motor EMI Filter
Item No. TV05101
52436
$ ea. +GST
